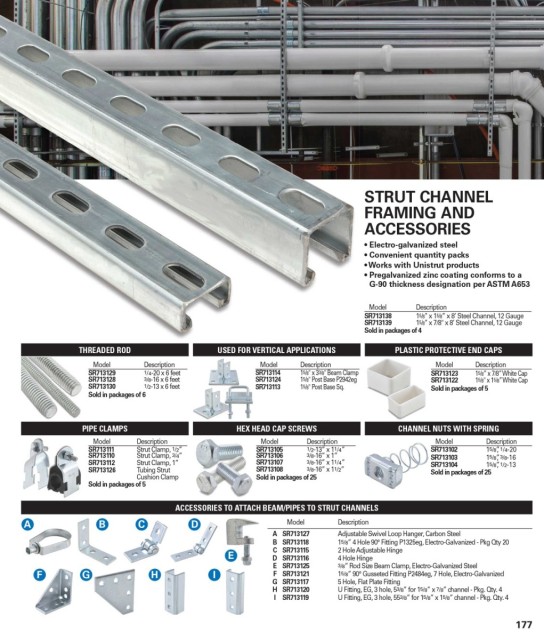

STRUT CHANNEL
FRAMING AND
ACCESSORIES

• Electro-galvanized steel
• Convenient quantity packs
• Works with Unistrut products
• Pregalvanized zinc coating conforms to a
G-90 thickness designation per ASTM A653

Model Description Price
SG713138 1 5/8” x 1 5/8” x 8’ Steel Channel, 12 Gauge $28.00
SG713139 1 5/8” x 7/8" x 8’ Steel Channel, 12 Gauge 26.00
Sold in packages of 4
THREADED ROD USED FOR VERTICAL APPLICATIONS PLASTIC PROTECTIVE END CAPS
Model Description Price Model Description Price Model Description Price
SG713129 1 /4-20 x 6 feet $7.00 SG7131141 5/8" x 3 3/8" Beam Clamp $10.00 SG713123 1 5/8” x 7/8” White Cap $2.00
SG713128 3 /8-16 x 6 feet 6.00 SG7131241 5/8" Post Base P2942eg 23.00 SG713122 1 5/8" x 1 5/8” White Cap 3.00
SG713130 1 /2-13 x 6 feet 22.00 SG7131131 5/8" Post Base Sq. 26.00 Sold in packages of 5
Sold in packages of 6

PIPE CLAMPS HEX HEAD CAP SCREWS CHANNEL NUTS WITH SPRING
Model Description Price Model Description Price Model Description Price
SG713111 Strut Clamp, 1 /2” $4.00 SG713105 1 /2-13” x 1 1 /4” $ 2.00 SG713102 1 5 /8”, 1 /4-20 $2.00
SG713110 Strut Clamp, 3 /4” 4.00 SG713106 3 /8-16” x 1” 2.00 SG713103 1 5 /8”, 3 /8-16 2.00
SG713112 Strut Clamp, 1” 4.00 SG713107 3 /8-16” x 1 1 /4” 1.00 SG713104 1 5 /8”, 1 /2-13 2.00
SG713126 Tubing Strut 6.00 SG713108 3 /8-16” x 1 1 /2” 1.00 Sold in packages of 25
Cushion Clamp Sold in packages of 25
Sold in packages of 5
ACCESSORIES TO ATTACH BEAM/PIPES TO STRUT CHANNELS
A B C D Model Description Price
A SG713127 Adjustable Swivel Loop Hanger, Carbon Steel $3.00
B SG713118 1 5 /8” 4 Hole 90° Fitting P1325eg, Electro-Galvanized - Pkg Qty 20 4.00
C SG713115 2 Hole Adjustable Hinge 7.00
E D SG713116 4 Hole Hinge 11.00
E SG713125 3 /8” Rod Size Beam Clamp, Electro-Galvanized Steel 8.00
F G H I F SG713121 1 5 /8” 90° Gusseted Fitting P2484eg, 7 Hole, Electro-Galvanized 9.00
G SG713117 5 Hole, Flat Plate Fitting 11.00
H SG713120 U Fitting, EG, 3 hole, 5 3 /8” for 1 5 /8” x 7 /8” channel - Pkg. Qty. 4 11.00
I SG713119 U Fitting, EG, 3 hole, 55 3 /8” for 1 5 /8” x 1 5 /8” channel - Pkg. Qty. 4 12.00

177
